Docker 👷🏼‍♂️👷🏼‍♀️

Useful commands

docker info
docker version - provides more info than docker --version

Images

docker images - lists all the docker images docker rm [image id] - removes the image

Name structure:- registry.example.com:port/organisation/image-name:version-tag
Normally you can leave out the “registry.example.com:port”
docker pull -> useful to pull images down ahead of time so you ca work on them when off line.

Images can accumulate quickly

docker rmi <image-name:tag> - removes the image
Can also use docker rmi <image id>

Containers

command	action
docker ps	list containers (running only)
docker ps -a	list containers (all)
docker start [containerID]
docker stop [containerID]
docker restart [containerID]
docker container start [containerID]
docker container stop [containerID]
docker container restart [containerID]

docker container ls same as docker ps docker container ls -a same as docker ps -a

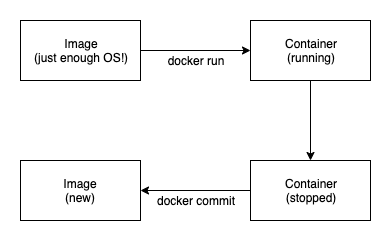

Docker Flow

docker flow

Commit

docker commit <container name>
Docker tag <sha 256 code from commit> <new image name>
Docker commit <new image name>:<tags>. (If any tags available)

Run

docker run -ti ubuntu:latest bash

-ti - terminal interactive Bash - process to run inside container :latest version of ubuntu to run

docker run -ti ubuntu bash -c “sleep 3; echo all done”

Omitting the tag means docker will run the latest version -c means run a command, followed by the commands to run in the process

docker run —rm

—rm remove the container after it exits

docker exec -ti <container name> bash

Executes another process in container, useful for debugging but cannot change ports or volumes

Detaching

docker run -d

Runs in detached mode

Or ^ P ^ Q will detach the currently running container

docker attach <container name> - reattaches the container to the terminal

Listing Containers

docker ps - show running containers
docker ps -a  - show all containers
docker ps -l   - show last container

docker ps —format = $FORMAT

$FORMAT = \nID\t{{.ID}}\nIMAGE\t{{.Image}}\nCREATED\t{{.Running}}\nCOMMAND\t{{.Running}}\nSTATUS\t{{.Status}}\nPORT\t{{.Ports}}\nNAMES\t{{.Names}}\n

Managing Containers

docker logs

output of container (don’t let output get too large -> impacts on performance

Constraining resources

Memory:

docker run —memory <max allowed memory> <image name> <command>

CPU:

docker run —cpu-shares <relative to the containers>
docker run —cpu-quota <limit in general>

Lessons from the field

Don’t let containers fetch dependencies at the start (if a dependency is removed, it breaks your container) - include the dependency inside your container
Don’t leave important stuff inside unnamed, stopped containers

Volumes

These are virtual discs to shared and store data (between hosts and containers) There are two main types

persistent
ephemeral (i.e. temporary)

They are NOT part of the images.

Works like VM “shared folders”

docker run -ti -v /home/user/folder:/shared-folder ubuntu bash

/home/user/folder is the file path on the host /shared-folder is the path in the container

This can also be done with files

-v /home/user/readme.txt:/readme.txt

Note: the file must exist before the container is run, otherwise its assumed to be a folder.

Start up first container with:

docker run -v /shared-data …. —name my-container

( -v /shared-data means that the folder only exists in the container)

Start up the other container:

docker run —volumes-from my-container …

Now both containers have a /shared-data folder shared between them. /shared-data exists as long as ONE container is sharing it.

Docker registries

Registries manage and distribue images
The docker company offers these for free
Can also run your own

docker search <name> - search for image (or use hub.docker.com)
docker login -> log in to docker hub, creates token on local machine
docker pull debian:sid
docker tag debian:sid my-docker-id/new-image-name:v23
docker push my-docker-id/new-image-name:v23

Things to be aware of with registries

DON’T push images containing passwords
Clean up your images regularly
Be aware of how much you are trusting containers that you fetch

Connecting Containers

Legacy Linking

Set environment variables inside linking container for host and port -> old (legacy) system

IP address Binding

Services that listen ‘locally’ by default are only available in the container. To allow connections, you need to use the ‘bind address 0.0.0.0’ inside the container.

Use docker to limit access to the host only, e.g.

docker run -p 127.0.0.1:1234:1234/tcp

127.0.0.1 -> only from the host

Private Container Network

Can group containers into 'private' networks. Can explicitly chose who can connect to who. Done by exposing ports and linking containers - docker helps you find other exposed ports with Compose services

Exposing Ports

can be done inside and outside the container

docker run -p outside(host):inside(container)

e.g.

docker run -p 40000:50000 -p 40001:50001 ubuntu:14.04

ports 40000 and 40001 are on the host (outside) ports 50000 and 50001 are in the container (inside)

Exposing Ports Dynamically

Example

docker run -port 50000 -port 50001 --name echo-server ubuntu:14.04

ports 50000 and 50001 are inside the container. To find the host ports mapped to these, use:-

docker port echo-server

This should produce an output like:-

50000/tcp -> 0.0.0.0:32770
50001/tcp -> 0.0.0.0:32771

Allows many containers running fixed ports - no need to worry about conflicts - often used with a service discovery program.

UDP Ports

docker run -p 12345:12345/udp

Can also specify /tcp, but tcp is the default anyway.

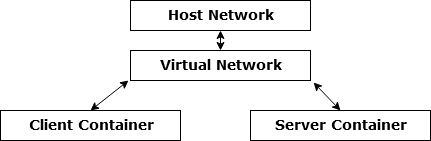

Connecting between containers

connecting containers

Linking Directly

generally used with orchestration
links all ports but only one way
only for services that cannot be run on different machines
e.g. a service and health check that monitors it
services and its db? Probably NOT a good idea
